Ruibao Y40 pure electric garbage collection vehicle is mainly used for the classified collection and transportation of barreled garbage in residential areas, towns, commercial areas, tourist attractions, schools and other places. It can also collect garbage in fruit bags and bags. It is pure electric operation with low cost and zero emission.

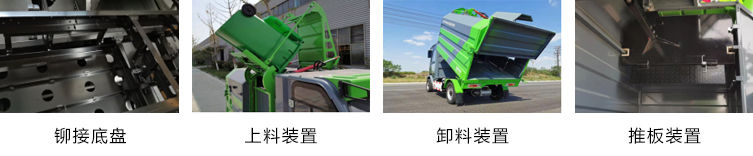

◆ Chassis: high strength square steel riveted chassis, high quality carbon steel, electrophoresis antirust treatment, corrosion resistance
◆ Body: fully enclosed cab, transparent glass on three sides, front stainless steel bumper, high-quality high-strength metal body, good working sight, safe and beautiful.
◆ Battery: 12 * 6V / 200ah maintenance free lead acid batteries and 72V / 250ah lithium battery pack
◆ Hydraulic system: 72V DC brushless motor hydraulic device, stable operation
◆ Feeding mode: double hydraulic pull rod side tipping bucket feeding
◆ Pushing plate device: horizontal compression pushing plate is built in the box, which can improve the loading capacity of the box
◆ Unloading mode: back tipping type, with maximum tipping angle of 50 degrees
◆ Seat: cushion and shock absorption seat, with gravity sensing device, strong safety
◆ Steering system: electric power steering system
◆ Tire: four wheel, radial brand vacuum tire, wear resistance, long service life
◆ Temperature control system: cold and warm air conditioning (limited to lithium battery version)
| Parameters | Ruibao Y40 pure electric garbage truck |
| Voltage / rated power | 72V/9Kw |
| Mileage | ≥100Km |
| Box volume | 3.5m3 |
| Rated load | 1300kg |
| Maximum driving speed | 35Km/h |
| braking distance | ≤4m |
| Climbing ability | ≥30% |
| Turning radius | ≤5m |
| Dimensions | 3830*1570*2205mm |
| Net weight | 1840kg（Lead acid）、1610kg（Lithium battery） |
| Number of passengers allowed | 2 people |
